What Is a Worker?

Workers solve a fundamental problem in multi-framework RL research: how do you run CleanRL, Ray RLlib, XuanCe, and LLM agents in the same platform without them conflicting?

The Problem

RL libraries are designed to run standalone. They each have their own:

• Dependency trees (often conflicting versions of NumPy, PyTorch, etc.)

• Logging systems (TensorBoard, Weights & Biases, custom loggers)

• Configuration formats (YAML, JSON, CLI args, Python dicts)

• GPU management strategies

• Error handling and signal traps

Running them inside a single process leads to import conflicts, segfaults, and unpredictable behaviour.

        graph LR
    subgraph "❌ Single-Process (Fragile)"
        APP["Monolithic App"]
        APP --> CRL["CleanRL"]
        APP --> RAY["Ray RLlib"]
        APP --> XUA["XuanCe"]
        CRL -.->|"torch 2.0"| CONFLICT["⚠️ Version Conflict"]
        RAY -.->|"torch 2.1"| CONFLICT
    end

    style CONFLICT fill:#ff4444,stroke:#cc0000,color:#fff
    style APP fill:#ddd,stroke:#999


The Solution: Process Isolation

MOSAIC runs every RL library in its own OS process. The only communication channel is a simple, well-defined IPC protocol.

        graph TB
    subgraph "✅ Multi-Process (Robust)"
        DAEMON["Trainer Daemon"]
        DAEMON -->|"spawn"| P1["Process 1<br/>CleanRL + torch 2.0"]
        DAEMON -->|"spawn"| P2["Process 2<br/>Ray RLlib + torch 2.1"]
        DAEMON -->|"spawn"| P3["Process 3<br/>XuanCe + torch 2.0"]
        P1 -->|"JSONL stdout"| DAEMON
        P2 -->|"JSONL stdout"| DAEMON
        P3 -->|"JSONL stdout"| DAEMON
    end

    style DAEMON fill:#50c878,stroke:#2e8b57,color:#fff
    style P1 fill:#ff7f50,stroke:#cc5500,color:#fff
    style P2 fill:#ff7f50,stroke:#cc5500,color:#fff
    style P3 fill:#ff7f50,stroke:#cc5500,color:#fff


This gives us:

• Fault containment: a crashed worker cannot freeze the GUI or kill other workers

• Dependency freedom: each worker can pin its own library versions

• GPU isolation: CUDA_VISIBLE_DEVICES is set per-process

• Clean shutdown: SIGTERM to the process group kills the entire worker tree

Worker vs Operator

MOSAIC distinguishes two concepts that are easy to confuse:

Concept	Definition	Examples
Worker	A process-level execution unit that handles training, API calls, or bash script for custom workflows. Workers live in 3rd_party/ and communicate via JSONL over stdout. The Trainer Daemon manages the worker process lifecycle, passing configuration via JSON files and environment variables.	cleanrl_worker, xuance_worker, ray_worker, balrog_worker, mosaic_llm_worker
Operator	An agent-level interface used strictly for evaluation. The operator assigns workers to agents, loads trained policies (or connects to LLM endpoints), and exposes select_action(obs) -> action to the GUI. Operators support two modes: Manual (side-by-side comparison) and Script (automated long-running evaluation).	RL Operator, LLM Operator, Human Operator

Workers handle training separately from operators. An RL worker trains a policy and saves a checkpoint; an LLM worker connects to a vLLM instance. The operator then takes the result (trained policy or LLM endpoint) and assigns it to an agent for evaluation via select_action().

        %%{init: {"flowchart": {"curve": "linear"}} }%%
graph TB
    subgraph Training["Training Phase (Worker)"]
        WORKER["CleanRL Worker"]
        WORKER -->|"produces"| CKPT["Checkpoint"]
    end

    subgraph Eval["Evaluation Phase (Operator)"]
        OP["RL Operator"]
        SA["select_action(obs)"]
        OP --> SA
    end

    CKPT -->|"loaded by"| OP

    style Training fill:#ff7f50,stroke:#cc5500,color:#fff
    style Eval fill:#4a90d9,stroke:#2e5a87,color:#fff
    style CKPT fill:#f0e68c,stroke:#bdb76b

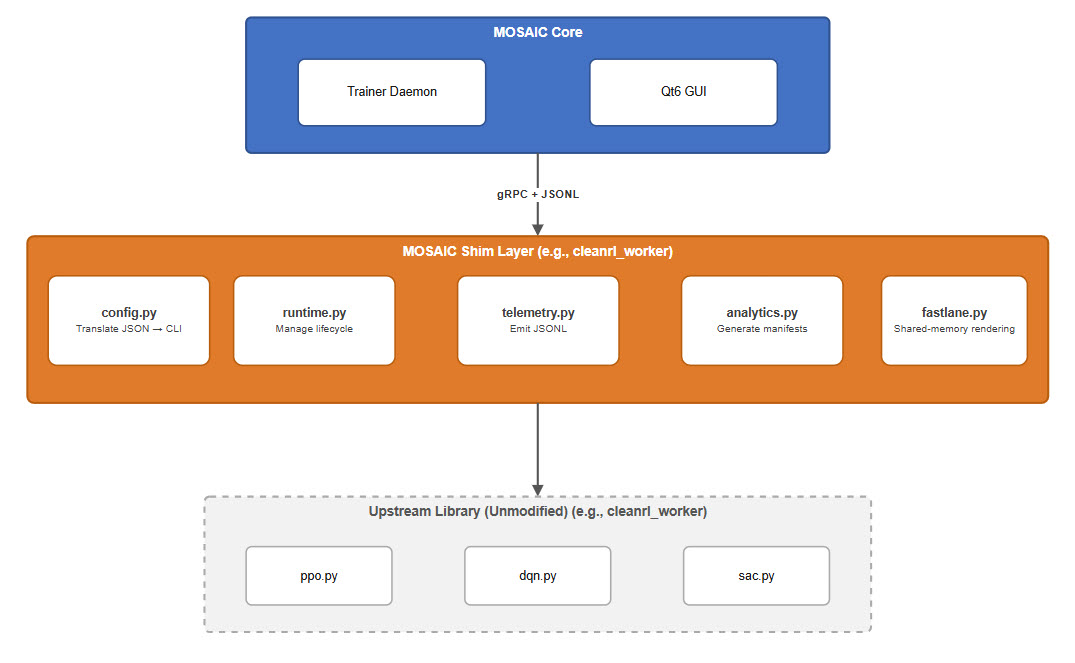

The Shim Pattern

Workers never modify the upstream library. Instead, a thin shim layer sits between MOSAIC and the library, translating everything:

Benefits:

• Upstream libraries can be updated independently

• The shim is the only code that needs testing against MOSAIC

• Adding a new worker means writing a new shim, not forking a library

• Protocol changes only affect the shim layer

Directory Layout

Every worker follows the same structure:

3rd_party/my_worker/
├── pyproject.toml              # Package metadata + entry point
├── README.md
├── my_worker/                  # MOSAIC shim layer
│   ├── __init__.py             # get_worker_metadata()
│   ├── config.py               # WorkerConfig implementation
│   ├── runtime.py              # Training orchestration
│   ├── analytics.py            # Analytics manifest generation
│   ├── telemetry.py            # JSONL lifecycle events
│   ├── fastlane.py             # Shared-memory rendering
│   └── cli.py                  # CLI entry point
├── upstream_lib/               # Vendored or pip-installed
└── tests/
    └── test_standardization.py # Protocol compliance tests
