WSL-Specific Errors

These errors are specific to running MOSAIC on Windows Subsystem for Linux (WSL 2). For shared errors that apply to both platforms, see the parent Common Errors page.

box2d-py – “ModuleNotFoundError: No module named ‘swig’”

Error (when installing box2d environments):

Building wheel for box2d-py (pyproject.toml) did not run successfully.
swigging Box2D/Box2D.i to Box2D/Box2D_wrap.cpp
swig -python -c++ -IBox2D -small -O -includeall -ignoremissing -w201 ...
Traceback (most recent call last):
  File "/home/hamid/.local/bin/swig", line 5, in <module>
    from swig import swig
ModuleNotFoundError: No module named 'swig'
error: command '/home/hamid/.local/bin/swig' failed with exit code 1

Cause: A broken SWIG Python script exists at ~/.local/bin/swig that tries to import a non-existent Python module called swig. This script shadows the proper system SWIG binary at /usr/bin/swig.

The box2d-py package requires SWIG (Simplified Wrapper and Interface Generator) to build its C++ extensions. When pip tries to build the wheel, it finds the broken script first because ~/.local/bin appears earlier in PATH than /usr/bin.

Fix:

# Remove or rename the broken SWIG script
mv ~/.local/bin/swig ~/.local/bin/swig.broken

# Verify system SWIG is now being used
which swig    # Should show /usr/bin/swig or /bin/swig
swig -version # Should show SWIG Version 4.x

# Retry the installation
pip install -e ".[box2d]"

If system SWIG is not installed, install it first:

sudo apt-get install -y swig

Note

This issue occurs when a Python package (possibly installed via pip) created a wrapper script at ~/.local/bin/swig instead of using the system SWIG. The wrapper script is non-functional and must be removed to allow the proper SWIG binary to be used.

Trainer daemon – “libGL.so.1: cannot open shared object file”

Error (when running ``./run.sh``):

Checking for existing trainer processes...
Starting trainer daemon...
Waiting for trainer daemon...
ERROR: Trainer daemon failed to start. Check var/logs/trainer_daemon.log

Check the log (var/logs/trainer_daemon.log):

File "/home/.../gym_gui/validations/validations_ui.py", line 8, in <module>
    from PyQt6 import QtCore, QtWidgets
ImportError: libGL.so.1: cannot open shared object file: No such file or directory

Cause: PyQt6 depends on OpenGL and EGL shared libraries at import time, even for non-GUI components like the trainer daemon. The import chain is:

trainer_daemon -> dispatcher -> subprocess_validation -> validations_ui -> PyQt6

On native Ubuntu desktop these libraries come pre-installed, but on WSL minimal installs they are missing.

Fix:

sudo apt-get install -y libegl1 libgl1 libopengl0 libxkbcommon0

Then retry:

./run.sh

Tip

If you see similar errors for other lib*.so files, install the full Qt runtime dependencies:

sudo apt-get install -y libgl1 libegl1 libopengl0 \
    libxkbcommon0 libxkbcommon-x11-0 libdbus-1-3 \
    libfontconfig1 libxcb-icccm4 libxcb-image0 \
    libxcb-keysyms1 libxcb-randr0 libxcb-render-util0 \
    libxcb-shape0 libxcb-xfixes0 libxcb-xinerama0 libxcb-cursor0

QRhiGles2 – “Failed to create temporary context”

Warning (repeated on console, may crash the GUI):

QRhiGles2: Failed to create temporary context
QRhiGles2: Failed to create context
Failed to create QRhi for QBackingStoreRhiSupport
QQuickWidget: Failed to get a QRhi from the top-level widget's window
QQuickWidget: Attempted to render scene with no rhi

Cause: Qt 6’s QQuickWidget uses the RHI (Rendering Hardware Interface) for GPU-accelerated rendering. On WSLg, hardware OpenGL contexts are not available through the virtual GPU, so RHI fails to create an OpenGL ES 2 context. This affects QML-based UI components (FastLane video panel) and can crash the GUI entirely.

This issue only affects WSL. Native Ubuntu with a real GPU and display server does not have this problem.

Fix: Add these lines to your .env file:

# Bypass RHI entirely -- use Qt's QPainter-based software renderer
QT_QUICK_BACKEND=software

# Fallback: if any non-Quick GL usage remains, force Mesa software GL
QSG_RHI_BACKEND=gl
LIBGL_ALWAYS_SOFTWARE=1

QT_QUICK_BACKEND=software tells Qt Quick to skip the RHI layer and use the QPainter-based software adaptation of the scene graph. No OpenGL context is needed at all. The main application window (QWidget-based) is unaffected – only QML/Quick content (the FastLane video panel) uses this fallback.

Note

QSG_RHI_BACKEND=software is not a valid value (Qt will print “Unknown key” and fall back to default). The correct env var for software rendering is QT_QUICK_BACKEND=software.

Native Ubuntu users should keep the default .env.example values (QSG_RHI_BACKEND=gl) or remove these lines entirely. Hardware-accelerated rendering works correctly on native installs with NVIDIA/AMD drivers.

GUI launches but text shows as squares or is invisible

Symptom: The MOSAIC window appears but all labels, buttons, and menus show as squares or are completely blank:

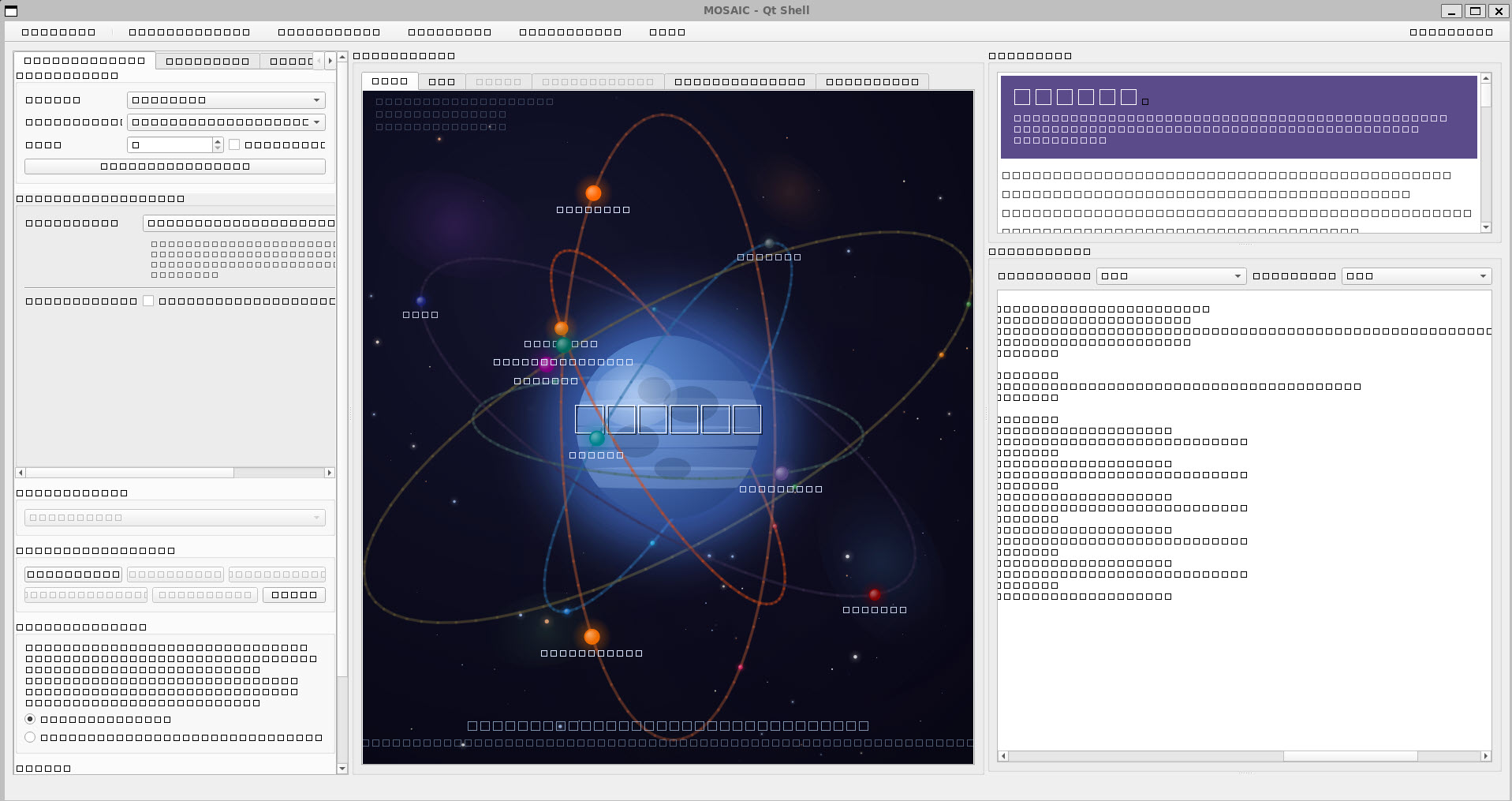

MOSAIC GUI with missing fonts -- all text rendered as squares

Cause: This happens when either:

  1. The fontconfig package is not installed – Qt uses fontconfig to discover system fonts, and without it, Qt cannot find any fonts at all.

  2. The font cache is stale – fonts were installed but fc-cache was not run, so Qt still cannot discover them.

This is especially common on WSL minimal installs, which ship with very few fonts and no fontconfig.

Fix:

# Install fontconfig and common fonts
sudo apt-get install -y fontconfig fonts-dejavu-extra fonts-liberation fonts-noto

# Rebuild the font cache (required after installing new fonts)
fc-cache -fv

Then restart the application. Text should render correctly:

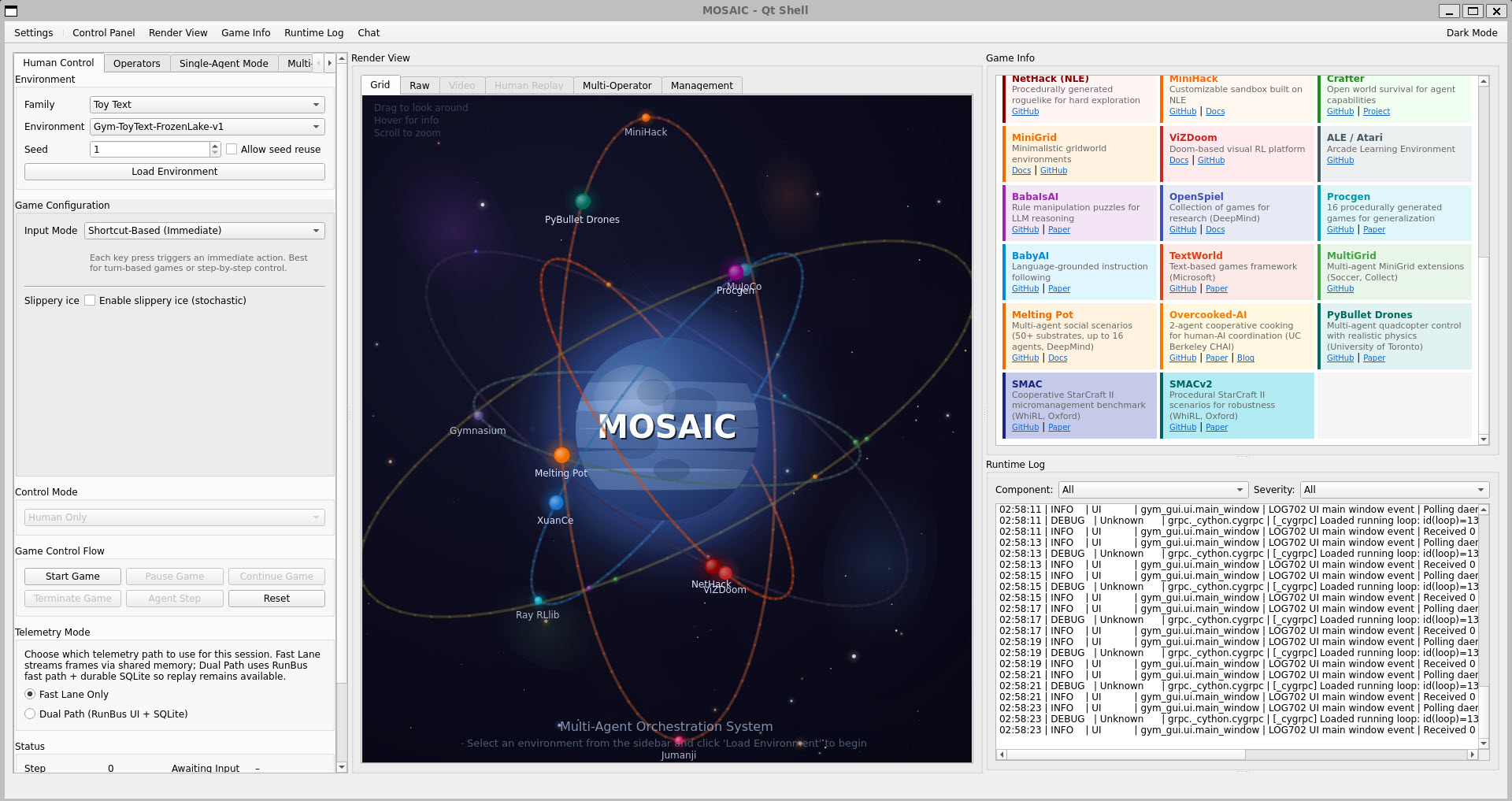

MOSAIC GUI with fonts working correctly after installing fontconfig

PyQt6 – “Could not load the Qt platform plugin”

Error:

qt.qpa.plugin: From 6.5.0, xcb-cursor0 or libxcb-cursor0 is needed to load
the Qt xcb platform plugin.
qt.qpa.plugin: Could not load the Qt platform plugin "xcb" in "" even though
it was found.
This application failed to start because no Qt platform plugin could be initialized.

Cause: PyQt6 >= 6.5 requires libxcb-cursor0 for the X11 (xcb) platform plugin. This library is not installed by default on minimal WSL distributions.

Fix:

sudo apt-get install -y libxcb-cursor0

If the GUI still fails to launch after installing libxcb-cursor0, check that your display is configured:

# Check DISPLAY is set (WSLg should set this automatically)
echo $DISPLAY    # Should show :0

# If empty, set it manually
export DISPLAY=:0

CUDA / GPU not detected on WSL

Error:

>>> import torch
>>> torch.cuda.is_available()
False

Cause: On WSL, CUDA uses the Windows NVIDIA driver. Do not install the Linux NVIDIA driver inside WSL.

Fix:

# Verify the Windows driver is visible inside WSL
nvidia-smi

# If nvidia-smi works but torch doesn't detect CUDA, reinstall torch
pip install torch --index-url https://download.pytorch.org/whl/cu121

If nvidia-smi is not found, update your Windows NVIDIA driver from nvidia.com/drivers.

Quick Reference: WSL System Dependencies

# Install all WSL-specific dependencies at once
sudo apt-get update
sudo apt-get install -y \
    libegl1 libgl1 libopengl0 libxkbcommon0 \
    libxkbcommon-x11-0 libdbus-1-3 libfontconfig1 \
    libxcb-icccm4 libxcb-image0 libxcb-keysyms1 \
    libxcb-randr0 libxcb-render-util0 libxcb-shape0 \
    libxcb-xfixes0 libxcb-xinerama0 libxcb-cursor0 \
    libnss3 libnspr4 libasound2 \
    libxcomposite1 libxdamage1 libxkbfile1 \
    fontconfig fonts-dejavu-extra fonts-liberation fonts-noto \
    jq
